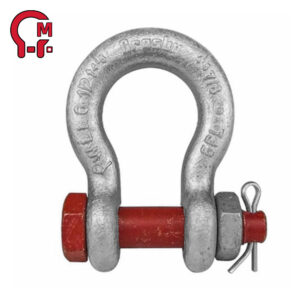

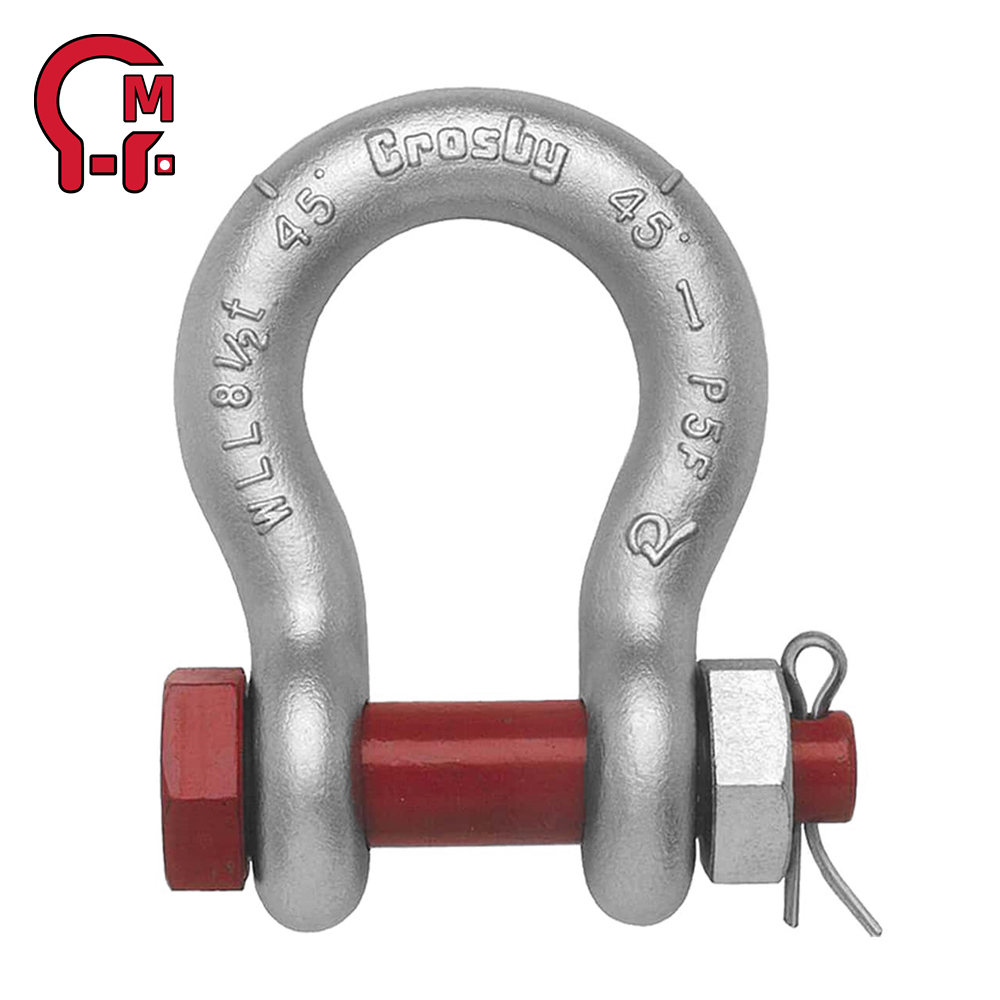

HLM G-2130/S-2130 Bolt Type Anchor Shackle, Crosby 3/16″ Bolt Type Galvanized Safety Shackles for Secure Lifting & Rigging

HLM INDUSTRY G2130/S2130 Shackle

• Capacities 1/3 thru 150 metric tons, grade 6.
• Working Load Limit and grade “6” permanently shown on every shackle.
• Forged – Quenched and Tempered, with alloy pins.
• Hot Dip galvanized or Self Colored. (85, 120, and 150 metric ton shackles are all hot dip galvanized bows and the bolts are Dimetcoted^® and painted red)
• Fatigue rated (1/3t – 55t).
• Shackles 25t and larger are RFID EQUIPPED.
• Approved for use at -40°C (-40°F) to 204°C (400°F).
• Meets or exceeds all requirements of ASME B30.26.
• Shackles 85 metric tons and larger are individually proof tested to 2.0 times the working load limit.
• Shackles 120 metric tons and larger are proof tested, Magnetic Particle Inspected and provided with Serialized Pin and Bow.
• Type Approval and certification in accordance with ABS 2006 Steel Vessel Rules 1-1-17.7, and ABS Guide for Certification of Cranes.
• 3.1 Certification as standard available for charpy and statistical proof test only up to 25 tons to DNV2.7-1 and EN13889.
• Crosby 2t through 25t G2130 anchor shackles are type approved to DNV Certification Notes 2.7-1- Offshore Containers. These Crosby shackles are statistical proof and impact tested to 42 joules (31 ft.-lbs.) min. ave. at -20°C (-4°F). The tests are conducted by Crosby and 3.1 test certification is available upon request.
• All other 2130 and all 2150 shackles can meet chary requirements of 42 joules (31 ft.-lbs) avg. at -20°C (-4°F) upon special request.
