HLM G-2169/S2169 Alloy Screw Pin “wide body” Shackle 7 Ton – Painted Wide Body Shackle, 36,000 lb, Alloy Steel

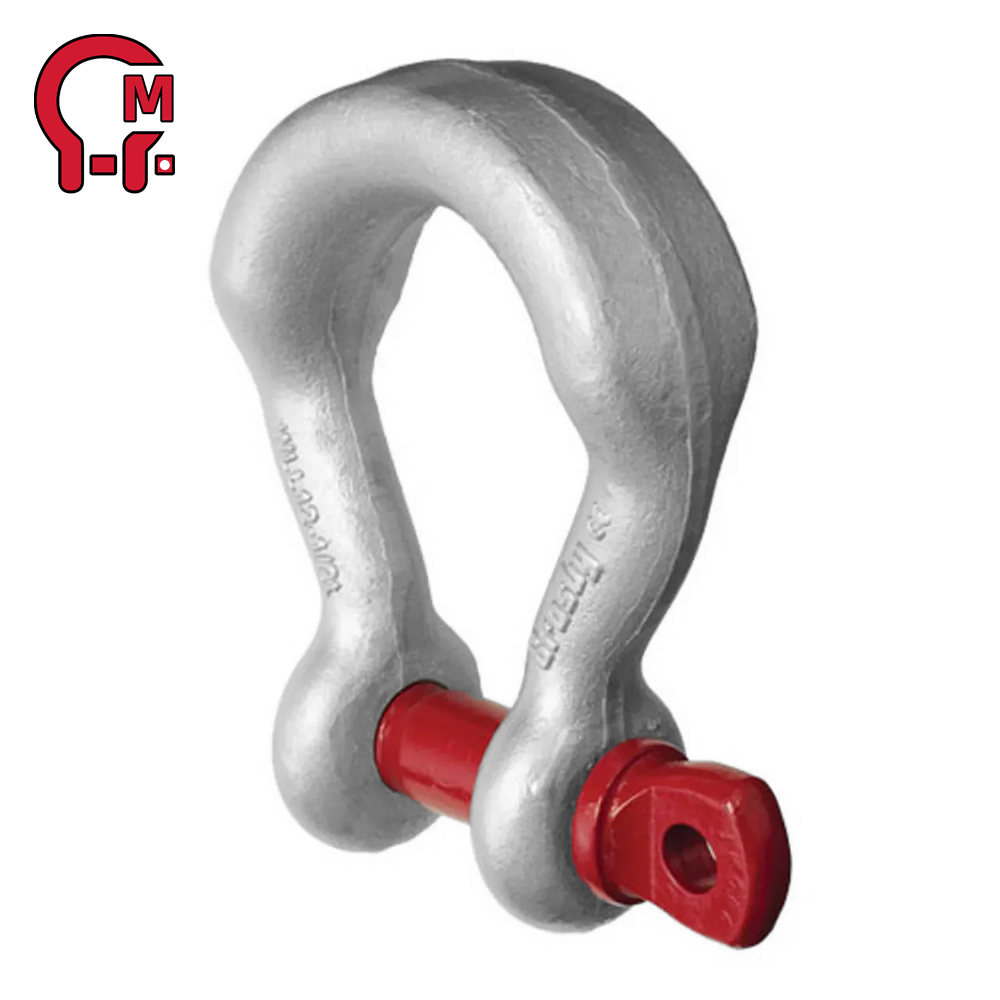

HLM INDUSTRY G2169/S2169 Alloy Screw PIN “WIDE BODY” Shackle
G2169/S2169 Alloy Screw Pin Wide Body Shackles significantly improves the life of wire rope slings. They can be used to connect high strength round slings, synthetic round slings or wire rope slings. The increase in shackle bow radius provides minimum 58% gain in sling bearing surface. Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
Features:
- Forged alloy steel – quenched and tempered for maximum strength
- Individually proof tested and magnetic particle inspected
Specifications:
- Size (Shackle Body Thickness): Wide Body 7 ton
- Throat Opening (Width Between Ears): 1.25″
- Throat Depth: 3.56″
- Pin Size: 0.88″
- Pin Type: Screw Pin
- Finish: Painted
- Material: Alloy Steel Body & Alloy Steel Pin
- Working Load Limit: 7.00 tons (14,000 lbs)
- Standards & Certifications: ASME B30.26 (identification, ductility , design factor, proof load and temperature requirements)
G-2169/S2169 Alloy Screw Pin “wide body” Shackle , Alloy Steel Shackle,
G2169/S2169 WIDE BODY Shackle Type, High-Strength Forged, Sizes.
HLM INDUSTRY – China Manufacturer, Supplier and Factory
G-2169/S2169 Alloy Screw Pin “wide body” Shackle | High-Strength Lifting Solution
Specifications of the Product:
Welcome to buy the newest and cheapest G2169/S2169 alloy screw pin WIDE BODY Shackles from HLM INDUSTRY. We are one of the leading manufacturers and suppliers in China, offering wholesale, OEM services, and discounted pricing. With CE certification, our in-stock products are manufactured to the highest standards in China, ensuring premium quality at competitive prices. Feel free to request a free sample.
