HLM Crosby 5/8″ 3.25 Ton S209T Black Theatrical Shackle 7/8″ Theatrical Screw Pin Anchor Shackle – 8-1/2 Ton WLL – Painted
HLM INDUSTRY GS-209T Shackle
Crosby S-209T Theatrical Black Screw Pin Anchor Shackles meet or exceed all requirements of ASME B30.26 including identification, ductility , design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26. Crosby Theatrical Shackles are powder coated flat black to help hide the rigging from the audience.
Features:
- Flat black baked on powder coated finish
- Forged Carbon Steel – Quenched and Tempered, with alloy pins
- Working Load Limit permanently shown on every shackle
- Approved for use at -40° C (-40° F) to 204° C (400° F)

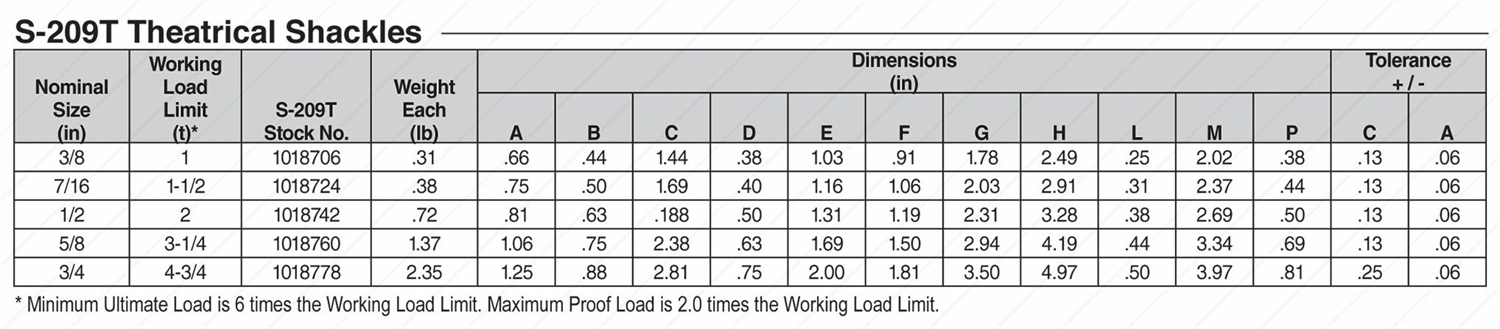

Specifications:
- Size (Shackle Body Thickness): 3/8″
- Throat Opening (Width Between Ears): 0.66″
- Throat Depth: 1.44″
- Pin Size: 0.44″
- Pin Type: Screw Pin
- Finish: Painted
- Material: Carbon Steel Body & Alloy Steel Pin
- Working Load Limit: 1.00 tons (2000 lbs)
- Meets the performance requirements of Federal Specification RR-C 271G, Type IVA, Grade A, Class 2, except for those provisions required of the contractor
S209T Black Theatrical Shackle, Carbon Steel Painted, bow Shackle Type, High-Strength Forged,
HLM INDUSTRY – China Manufacturer, Supplier and Factory
S-209T Shackle | High-Strength Lifting Solution
Specifications of the Product:
Welcome to buy the newest and cheapest S-209T Shackle from HLM INDUSTRY. We are one of the leading manufacturers and suppliers in China, offering wholesale, OEM services, and discounted pricing. With CE certification, our in-stock products are manufactured to the highest standards in China, ensuring premium quality at competitive prices. Feel free to request a free sample.
