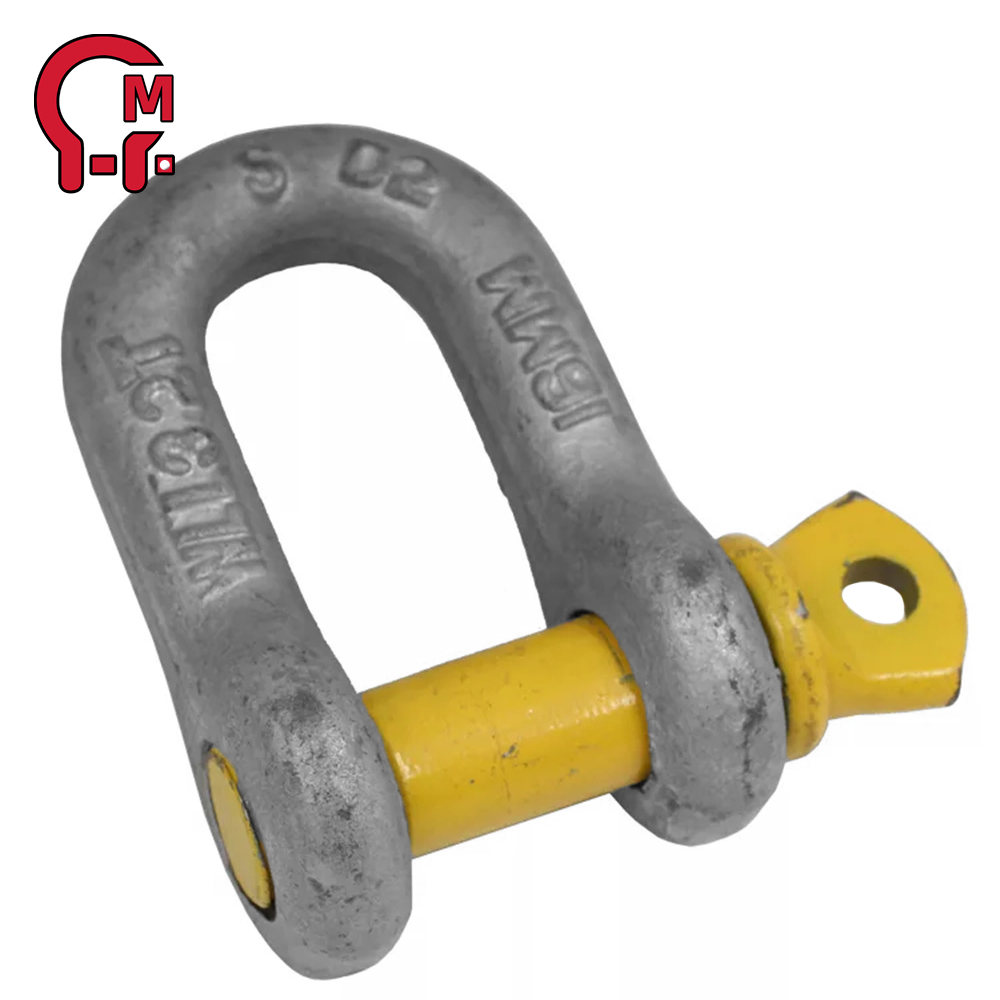

HLM G-210/S-210 Round pin chain Shackle – Hot Dip Galvanized 5/16″ G-210 Screw Pin Chain Shackle – 3/4 Ton

HLM INDUSTRY G210/S210 Shackle

G-210 Screw Pin Chain Shackles meet or exceed all requirements of ASME B30.26 including identification, ductility , design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.

Features:

  • Approved for use at -40° C (-40° F) to 204° C (400° F)
  • Forged Carbon Steel – Quenched and Tempered, with alloy pins
  • Working Load Limit permanently shown on every shackle
  • Meets the performance requirements of Federal Specification RR-C-271G, Type IVB, Grade A, Class 2, except for those provisions required of the contractor

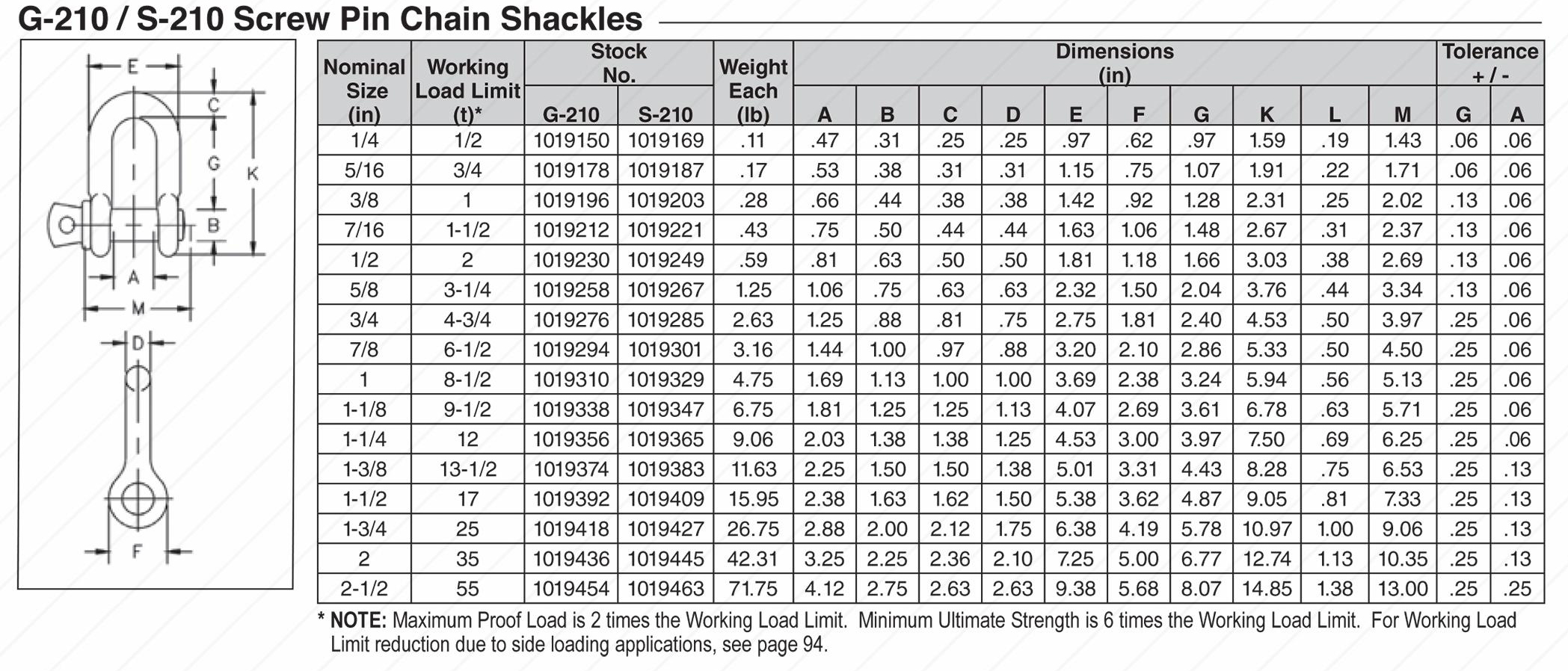

Specifications:

  • Size (Shackle Body Thickness): 1″
  • Throat Opening (Width Between Ears): 1.69″
  • Throat Depth: 3.24″
  • Pin Size: 1.13″
  • Pin Type: Screw Pin
  • Finish: Hot Dip Galvanized
  • Material: Carbon Steel Body & Alloy Steel Pin
  • Working Load Limit: 8.50 tons (17,000 lbs)
Inquiry Now
Category:

G210/S210 Round pinchain Shackle, Hot Dip Galvanized Alloy Steel Shackle, Lifting Bow Shackle
G210/S210 Bow Shackle Type, High-Strength Hot Dip Galvanized Forged, Sizes.

HLM INDUSTRY – China Manufacturer, Supplier and Factory

G210 round Pin chain Shackle | High-Strength Lifting Solution​

​Specifications of the Product:

Welcome​ to buy the ​newest and cheapest​ G210/S210 Round Pin chain Shackles from ​HLM INDUSTRY. We are one of the leading manufacturers and suppliers in China, offering wholesale, OEM services, and discounted pricing. With ​CE certification, our in-stock products are manufactured to the highest standards in China, ensuring premium quality at competitive prices. Feel free to request a ​free sample.



Product Inquire Now

"*" indicates required fields

Hidden
This field is for validation purposes and should be left unchanged.

RELATED PRODUCTS

HLM G-215/S-215 Round pin chain Shackle, 2,000 lb Working Load Limit, 21/32 in Wd Between Eyes, Carbon Steel

$0.01 Inquiry Now

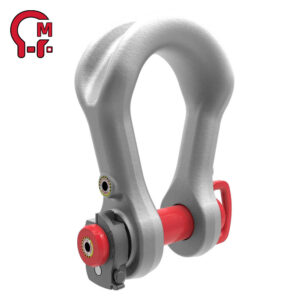

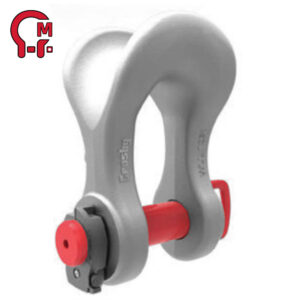

HLM G-2160E Easy-Loc Wide Body Shackle – Hot Dip Galvanized G-2160 Wide Body Sling Shackle – 7 Ton WLL

$0.01 Inquiry Now

HLM G-2169/S2169 Alloy Screw Pin “wide body” Shackle 7 Ton – Painted Wide Body Shackle, 36,000 lb, Alloy Steel

$0.01 Inquiry Now

HLM Marine Stainless Steel 304/316 European Type Bow Shackle Horseshoe Shackle 4-50mm Large Bow Shackle

$0.01 Inquiry Now

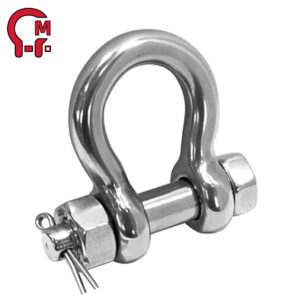

HLM Us Security Type G2130 5/8″ Marine Stainless Steel bow Shackle with Cotter Pin Lock 2 TON 4000 Lbs WLL Bolt Type Anchor Shackle (Marine Lifting Load Rated)
