HLM G-450 Wire Rope Clip, Galvanized | Rope Size:1/8–**3-1/2in | Weight: 6-4000lb

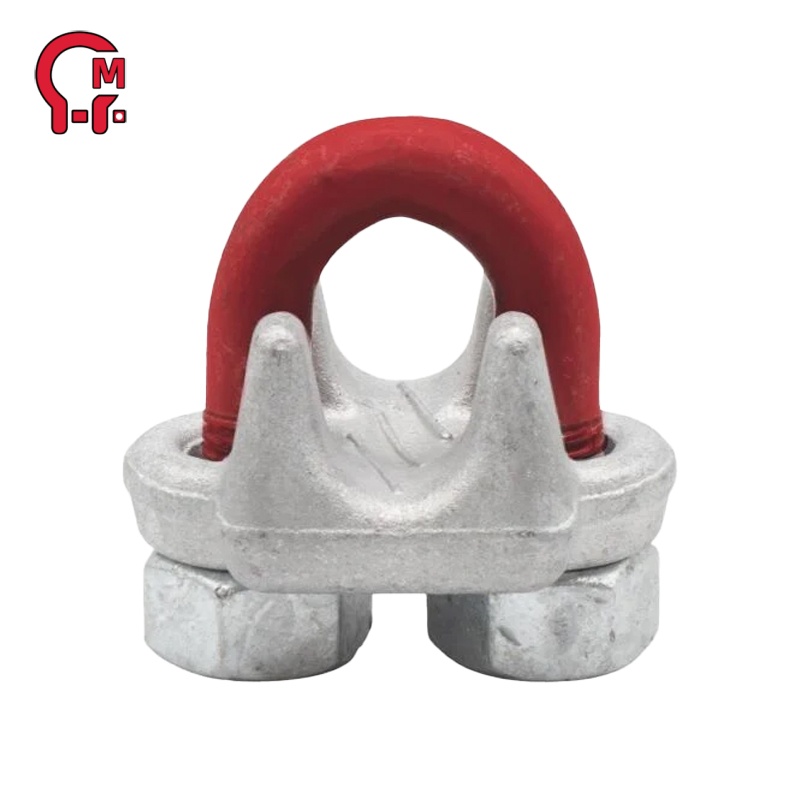

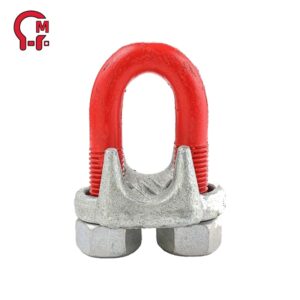

HLM INDUSTRY G-450 Wire Rope Clip
Each base has a Product ldentification Code (PlC) for material traceabilit , the name HLM or CG, and a size forged into it.
Based on the catalog breaking strength of wire rope, HLM wire rope clips have an eficiency rating of 80% for 1/8″ through 7/8″ sizes, and 90% for sizes 1″ through 3-1/2″.
Entire Clip is Galvanized to resist corrosive and rusting action.
Sizes 1/8″ through 2-1/2″ and 3″ have forged bases.
All Clips are individually bagged or tagged with proper application instructions and warning information.
Clip sizes up through 1-1/2″ have rolled threads.
Meets or exceeds all requirements ofASME B30.26 including identification, ductilit , design factor, proof load and temperature requirements. lmportantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

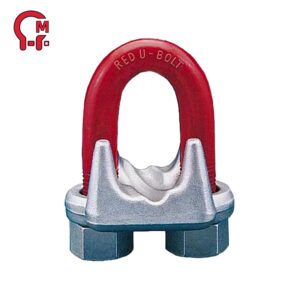

Look for the Red-U-Bolt®, your assurance of Genuine HLM Clips.
G-450 Wire Rope Clip, Engineered for Secure Wire Rope Fastening & Load-Bearing Safety.
G-450 Wire Rope Clip, Electro-plated U-Bolt and Nuts. ** 2-3/4″ and 3-1/2″ base is made of cast steel, Weight: 6-4000lb, Designed for Horizontal/Vertical Mounting on Wire Ropes.
HLM INDUSTRY – China Manufacturer, Supplier and Factory
G-450 Wire Rope Clip | Precision Fastening for Wire Rope Security & Load-Bearing Safety

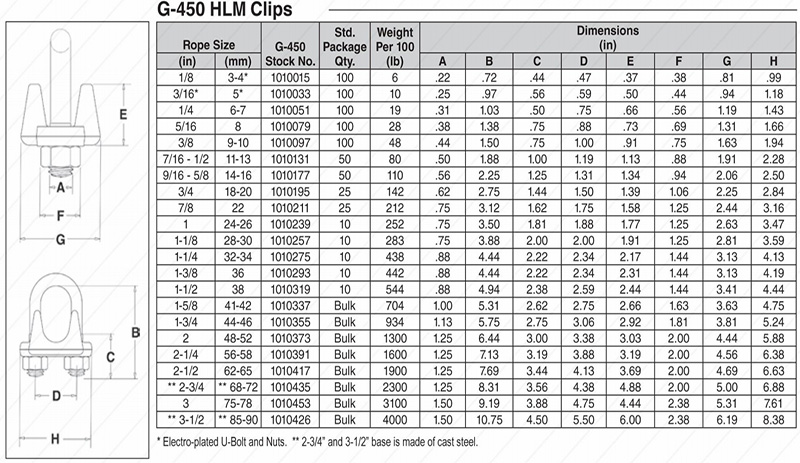

Specifications of the Product:
Welcome to buy the newest and cheapest G-450 Wire Rope Clip from HLM INDUSTRY. We are one of the leading manufacturers and suppliers in China, offering wholesale, OEM services, and discounted pricing. With CE certification, our in-stock products are manufactured to the highest standards in China, ensuring premium quality at competitive prices. Feel free to request a free sample.
