HLM HG-227 Jaw and Eye Turnbuckle, Forged Elongated Eyes for Easy Attachment & Reduced Stress | Hot Dip galvanized steel | Weight: .33-187lb

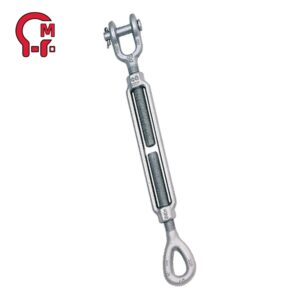

HLM INDUSTRY HG-227 Jaw and Eye Turnbuckle
- End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.
- Hot Dip galvanized steel.
- Turnbuckles eyes are forged and elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckles size 1/4″ through 2-1/2″, a shackle one size smaller can be reeved through eye.
- Forged jaw ends are fitted with bolts and nuts for 1/4″ through 5/8″, and pins and cotters on 3/4” through 2-3/4″sizes.
- Modified UNJ thread on end fittings for improved fatigue properties
- Body has UNC threads.
- TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
- Fatique Rated.
- Meets or exceeds all requirements of ASME B30.26 including identification, ductilit , design factor,proof load and temperature requirements. lmportantly, these turnbuckles meet other critical performance reguirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
- Meets the performance requirements of Federal Specifications FF-T-791b, Type 1 Form 1 — CLASS 8, and ASTM F-1145, except for those provisions required of the contractor.
- Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit.
HG-227 Jaw and Eye Turnbuckle, Hot Dip Galvanized Steel, WLL: 500-75,000lb, Weight: .33-187lb, Engineered for Rapid Connection & High-Strength Load Transfer
HLM INDUSTRY – China Manufacturer, Supplier and Factory
HG-227 Jaw and Eye Turnbuckle | Engineered for Rapid Connection & High-Strength Load Transfer in Heavy-Duty Rigging Systems

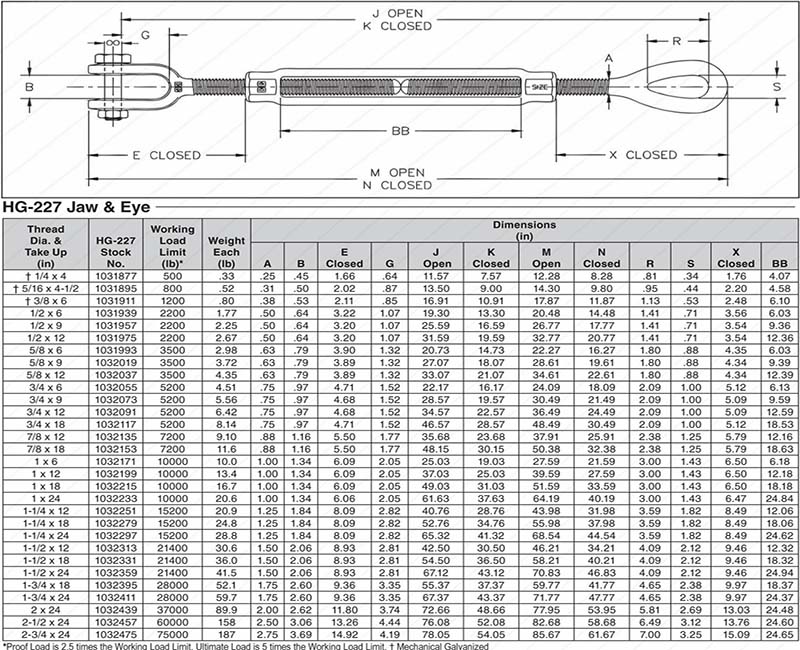

Specifications of the Product:
Welcome to buy the newest and cheapest HG-227 Jaw and Eye Turnbuckle from HLM INDUSTRY. We are one of the leading manufacturers and suppliers in China, offering wholesale, OEM services, and discounted pricing. With CE certification, our in-stock products are manufactured to the highest standards in China, ensuring premium quality at competitive prices. Feel free to request a free sample.
