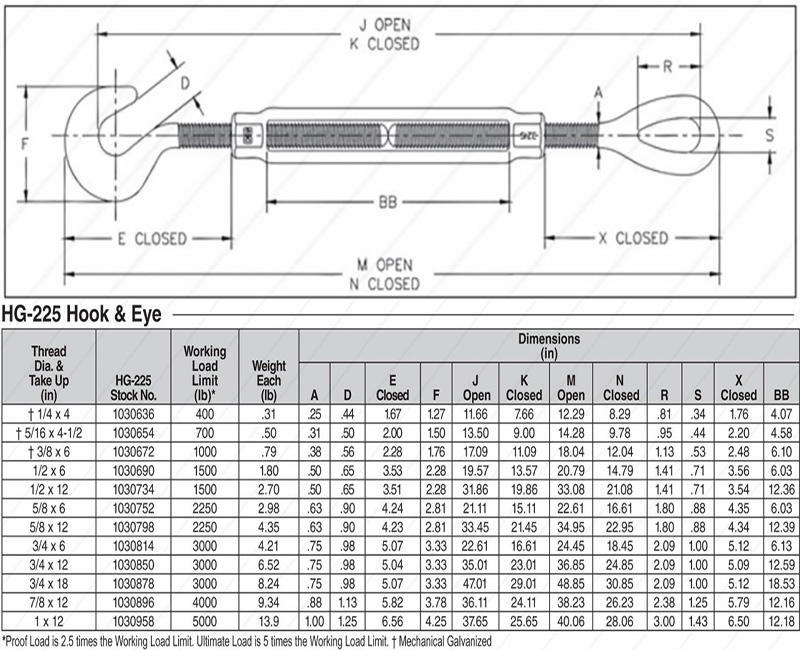

HLM HG-225 Hook and Eye Turnbuckle, Hot Dip galvanized steel | WLL: 400-5,000lb | Weight: .31-13.9lb

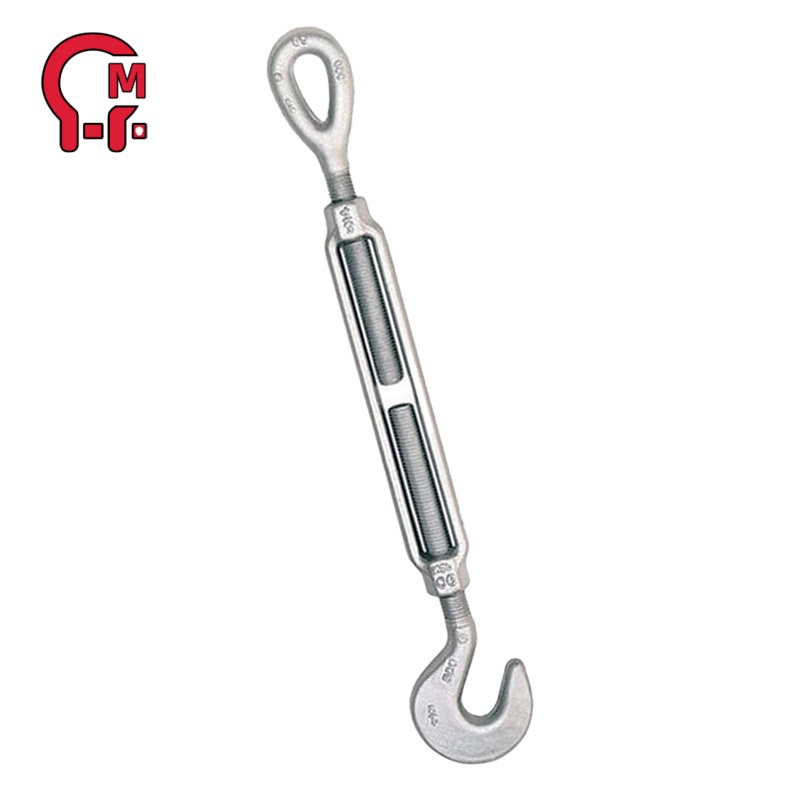

HLM INDUSTRY HG-225 Hook and Eye Turnbuckle

• End fitings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.
• Hot Dip galvanized steel.
• Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckles sizes 1/4″ through 1″, a shackle one size smaller can be reeved through eye.
• Turnbuckle hooks are forged with a greater cross sectional area that results in a stronger hook with better fatigue properties.
• TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
• Modified UNJ thread on end fittings for improved fatigue propertie
• Body has UNC threads.
• Fatique Rated.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductilit , design factor, proof load and temperature requirements. lmportantly, these turnbuckles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
• Meets the performance requirements of Federal Specifications FF-T-791b, Type 1 Form 1 — CLASS 6, and ASTM F-1145, except for those provisions required of the contractor.
• Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit.
